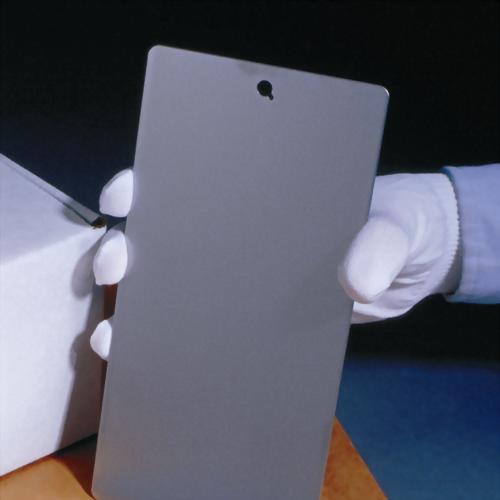

Q-PANEL 標準測試基板

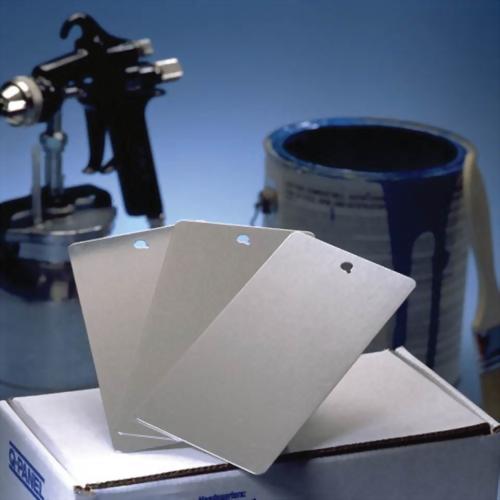

50多年來，Q-PANEL 測試基板已被世界公認為標準測試基板，能提供均勻、一致的測試表面，用于測試油漆、電鍍、粘合劑、密封膠、防銹劑和其它涂料。

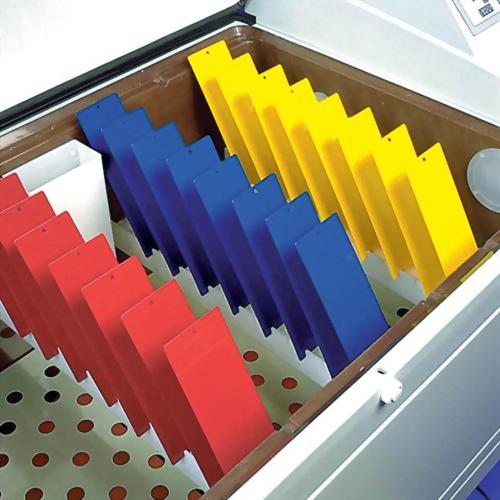

全世界數以千計的實驗室每年都在使用我們的鋼板和鋁板進行色彩開發、老化曝露、鹽霧及腐蝕測試、物理性能測試和品質控制。可從庫存立即發運各種尺寸和類型的試板。
全世界數以千計的實驗室每年都在使用我們的鋼板和鋁板進行色彩開發、老化曝露、鹽霧及腐蝕測試、物理性能測試和品質控制。可從庫存立即發運各種尺寸和類型的試板。
| STEEL PANELS | |
| TYPE | DESCRIPTION |
| QD | CRS SAE 1008/1010; 0.020" thick (0.5 mm); smooth finish |
| R | CRS SAE 1008/1010; 0.032" thick (0.8 mm); dull finish |
| S | CRS SAE 1008/1010; 0.032" thick (0.8 mm); ground finish |
| D | CRS SAE 1008/1010; 0.010" thick (0.25 mm); smooth finish |
| DT | CRS SAE 1008/1010; 0.010" thick (0.25 mm); bright tinplate |
| RS | CRS SAE 1008/1010; 0.063" thick (1.5 mm); ground finish |
| ALUMINUM PANELS | |
| TYPE | DESCRIPTION |
| A | Alloy 3003H14; 0.025" thick (0.6 mm); bare mill finish |
| AL | Alloy 3003H14; 0.025" thick (0.6 mm); chromate finish |
| AR | Alloy 2024T3; 0.063" thick (1.5 mm); bare mill finish |
| AD | Alloy 2024T3 Alclad; 0.063" thick (1.5 mm); alclad finish |

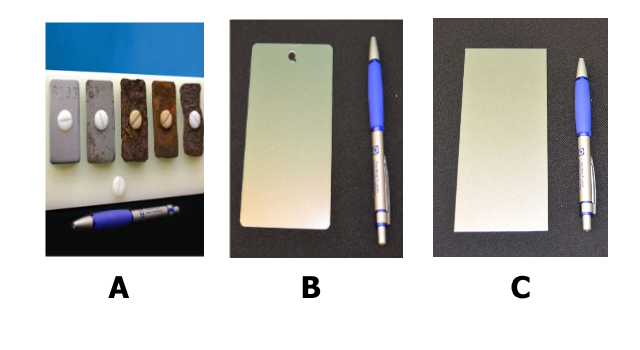

鹽霧專用試片
| Photo | Meets Standards: |
Size (W x L) ± 1 mm (± 0.04 in) |
Thickness ± 0.05 mm (± 0.002 in) |
Box Qty |
| A | GMW14872, 9540P, SAE J2334, J2721 |
25 x 51 mm (1 x 2 in) |
3.00 mm (0.125 in) |
30 |
| B | ASTM B117 |
76 x 127 mm (3 x 5 in) |
0.80 mm (0.032 in) |
30 |
| C | ISO 9227 VDA-233-102 |
70 x 150 mm (2.76 x 5.90 in) |
1.20 mm (0.047 in) |
30 |
